OVERVIEW

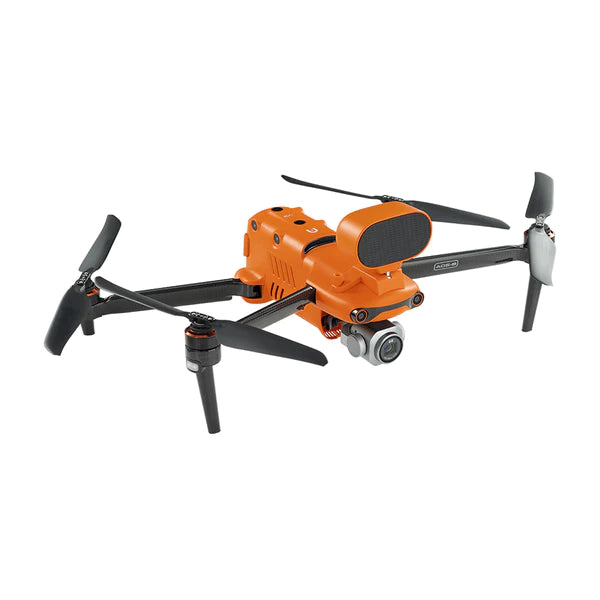

EVO II Pro Enterprise V3
Autel EVO II Pro RTK V3 is an advanced drone model that offers an impressive range of features designed for surveying and mapping applications. This drone is equipped with advanced RTK technology that allows it to achieve highly accurate positioning with an accuracy of up to 1cm+1ppm (1.5cm+1ppm). This makes it ideal for use in a wide range of industries, including construction, agriculture, and mining.
Overall, the Autel EVO II Pro RTK V3 is an outstanding drone that delivers exceptional performance and versatility for surveying and mapping applications. Whether you are working in construction, agriculture, or any other industry that requires highly accurate data and detailed maps, the Autel EVO II Pro RTK V3 is the ideal solution for your needs.
1 inch CMOS Sensor
6K/30fps Videos
EnterpriseAccessories
ADS-BReceiver
15km Transmission Range
360° Obstacle Avoidance
Dynamic Track 2.1 42 MinutesFlight Time
7.9 Smart Controller V3
Work Like Never Before
Optimize your workflow with our toughest EVO II Pro Enterprise V3 yet, bulked up with new accessories and camera features to meet the demands of professionals in every industry from firefighting to construction. With a foldable design that can be deployed in seconds and easy-to-use controls that can be operated with a single hand, the EVO II Dual 640T provides a surefire way to increase efficiency without increasing stress.
-
16x Digital Zoom
-
8-mile HD Transmission
-
Modular Accessories
-
Centimeter-level Positioning with RTK
-
ADS-B Receiver
-
360° Obstacle Avoidance
-
All New 6K 1" CMOS Camera
See clearer with Sony's new 20 megapixel 1-inch CMOS image sensor, supporting up to 6K video resolution with greater dynamic range and higher frame rates.
- Adjustable Aperture
f/2.8 To f/11 - Moonlight Algorithm
2.0
- Adjustable Aperture
-
-
Embrace The NighT Autel's Moonlight Algorithm 2.0 brings you additional noise reduction processing. Paired with the upgraded CMOS, the EVO II Pro Enterprise V3 succeeds in night-time operations.
-
-
Zoom With Confidence The payloads feature 3x lossless zoom and 16x digital zoom. Fly at safer distances while still getting high-fidelity imagery.
-
-
Accident Reconstruction Rapidly reconstruct scenarios with precision, using built-in mission planning and third-party compatibility including Pix4D, DroneDeploy, and SkyeBrowse.
-
-
Greater Dynamic Range With 4K HDR 4K HDR offers greater detail in highlights and shadows, providing higher-quality images from the most demanding environments.
Autel SkyLink 2.0 Video Transmission
SkyLink 2.0 is built into the EVO II Pro Enterprise V3 chipset, expanding the possibilities for your most critical workflows.
-
9+ Miles Do more because you can fly further away
-
QHD Incredible video resolution within a mile, meeting most common use cases.
-
2.4GHz / 5.8GHz / 900MHz Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.
-
* 900MHz is only applicable for FCC countries.
Mission Planner
Rectangular and Polygon mission planners - Those are going to be great for anybody that's dealing with photogrammetry. So anybody that needs to be able to capture a lot of images in a rectangular mission or polygon mission, you're going to be able to do that in an autonomous fashion. Then you're going to be able to take EVO II Pro Enterprise V3's images and upload them to your 3D mapping
-
Rectangular Mission
-
Polygon Mission
-
Flight Route Options -
Demo Screen
Autel Smart Controller V3
Smart Controller V3's 7.9-inch, 2000 nit high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 9 miles away and enhances anti-interference abilities with triple-band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.
-
-
- 7.9-Inch HD Touch Screen
-
- -4 °F to 104 °F Temperature Range
-
- 2000 nits Maximum Brightness
-
- IP43 Resistance
-
Broadcast with Live Deck 2
Transmit real-time HD video to a wide-variety of devices, allowing cross-departmental teams enhanced situational awareness and communication which can lead to quicker and better decision making.(Support all EVO II V3 drones.)
-
-
1080P/60FPS Video Stream
-
-
Three Auto-Switch Bands
-
-
Transmission Range
-
-
5-Hour Battery Life
-
-
IP43 Resistance
EVO II - AI Enhanced Dynamic Track
EVO II Pro Enterprise V3 can model location and speed of targets simultaneously, predict their trajectory accurately, avoiding obstacles during flight, and track them continuously while identifying up to 64 objects at the same time. The function can track the subject in three modes: behind, side-by-side, or fixed position.
360° Obstacle Avoidance
EVO II Pro Enterprise V3 Drone’s front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between the aircraft and potential obstacles. Begin detecting potential hazards at up to 30m away and let EVO II accurately control the speed of the drone to avoid a collision.
Multiple Intelligent Flight Modes
Autel EVO II Drone supports multiple smart Flight Modes includes Dynamic Track, Parallel Track, Tripod Track, Viewpoint, Orbit, Gesture control, VR Flight, Waypoint and more.
Failsafe & Automatically Return Home
EVO 2 Enterprise V3 will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.
42 Minutes & 9 Miles HD Transmission
Autel EVO 2 Enterprise V3 comes standard with a 7100mAh rechargeable battery. Providing up to 42 mins of flight time in forward motion to up to 15km (9 miles) away and 35min at a hover. And top speed up to 45MPH, additionally There is no geofencing or cellular service restrictions on any of EVO II.
-
-
42 Minutes of Flight Time Large propellers and revised flight algorithms provide the longest flight time in its category.
-
-
Extended Thermal Vents Additional thermal vents for additional heat dissipation, prolonging battery life.
-
-
Longer Carbon Fiber Arms Carbon fiber arms and longer propellers provide additional rigidity and flight stability.
Spotlight | Strobe | Speaker | RTK Module (optional)
Stores multiple voice recordings and plays clips on loop, and allows the command center to speak to ground teams during emergency situations for efficient operations.
Scan search areas to locate stranded persons and quickly dispatch rescue teams.
The built-in ADS-B receiver provides timely warnings of any incoming crewed aircraft nearby.
Enterprise Bundle Accessories
-
Spotlight
Beams a powerful, long-distance aerial light when searching or shooting at night.
-
Strobe
Indicate the location of the aircraft at night to avoid air traffic accidents.
-
Speaker
Enables more effective on-site communication through long-distance telephony and audio loops.
-
- Support Live Deck 2
- Moonlight Algorithm 2.0
- Autel Skylink 2.0
- Smart Controller V3
- 15KM Tansmission
- 2.4GHz/5.8GHz/900MHz
-
- /
- /
- Autel SkyLink
- Smart Controller V2
- 9KM Transmission
- 2.4GHz/5.8GHz
Centimeter-Level Positioning
RTK Horizontal Positioning Accuracy: 1cm+1ppm
RTK Vertical Positioning Accuracy: 1.5cm+1ppm
The EVO II RTK V3 introduces a brand-new RTK module, which provides real-time centimeter-level positioning data, and supports Post-Processing
Kinematic (PPK).
The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports an
RTK base station and NTRIP RTK network, which help to achieve accurate and stable data acquisition in complex operation environments.
No GCP Required
EVO II RTK Series V3 can connect to an NTRIP network and does not need GCPs to provide centimeter-grade accuracy.
3rd Party Base Station Support
EVO II RTK Series V3 supports all NTRIP-compatible base stations.
Autel Explorer For Mapping
-
-
Multi-NTRIP Profile Saving
For repeatable data acquisition missions, you can record the drone's previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.
-
-
Photo Replication
For repeatable missions, you can record the drone's previous shooting parameters. The gimbal, camera, and movement settings will be replicated, allowing missions to be easily duplicated.
-
-
Multi-Battery Missions
The Explorer App allows the user to create and save multiple NTRIP profiles for different locations, so they don't have to manually input a new flight plan for every new location.
SPECS
Autel EVO II Pro Enterprise V3 6K Drone Specification
| Aircraft | |
| Takeoff Weight (Without Accessories) | EVO II Pro Enterprise V3 Enterprise：2.45lbs (1110g) EVO II Dual 640T Enterprise：2.51lbs (1136.5g) |
| Max Takeoff Weight | 1999 g |
| Diagonal Length | 16.8 inches (427 mm) |
| Size(L*W*H) | Folded: 9.6*5.1*4.4 inches; 245*130*111mm Unfolded: 19.9*24.4*4.4 inches; 506*620*111mm |
| Max Takeoff Altitude | 4.3 miles (7000 m) MSL |
| Max Ascent Speed | 18 mph (8 m/s) (Ludicrous) |
| Max Descent Speed | 9 mph (4 m/s) (Ludicrous) |
| Max Level Flight Speed | 45 mph (20 m/s) (Ludicrous) |
| Max angular velocity | 120°/s |
| Max tilt angle | 33° (Ludicrous) |
| Max Flight Time (no wind) | 42 min（without accessories） |
| Max Hovering Time (no wind) | 38 min(with strobe) 29 min(with spotlight) 34 min(with loudspeaker) 36 min(with RTK module) |
| Operating Temperature Range | 14℉ to 104℉ (-10℃ to 40℃) |
| Max Wind Speed Resistance | 27mph, 12 m/s (Take-off and landing) |
| Operating Frequency | 2.400 GHz - 2.4835 GHz； 5.725GHz - 5.850 GHz |
| Hovering accuracy | When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally) |
| Internal storage | 8GB |
| SD storage | max. support 256GB (UHS-3 or Class 10) |
| Gimbal | |
| Gimbal | 3-axis stabilization |
| Mechanical range | Tilt: -135° to +45°; Pan: -100° to +100° |
| Controllable rotation range | Tilt: -90° to +30°; Pan: -90° to +90° |
| Max Control Speed (Tilt) | 300°/s |
| Angular Vibration Range | ±0.005° |
| Camera | |
| Sensor | 1" CMOS Effective Pixels: 20 MP |
| Lens | FOV: 82° 35 mm format equivalent focal Equivalent focal length: 29 mm Aperture: f/2.8 - f/11 Focus range: 0.5 m to infinity |
| ISO Range | Video: 100-44000 Photo: 100-6400 |
| Shutter Speed | Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates |
| Zoom | 1 ~ 16x (Max. 3x lossless zoom) |
| Photo mode | Single shot/Burst shooting/AEB/Time Lapse/HDR |
| Maximum photo size | 5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9) |
| Image Format | JPG (default) / 12bits DNG / JPG+12bits DNG |
| Photo mode | 5472x3076P30/P25/P24 3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24 |
| Video format | MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) |
| Max bitrate | 120Mbps |
| Supported file system | FAT32/exFAT |
| Remote Controller | |
| *Operating Frequency | 902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only) |
| Max Transmission Distance(unobstructed, free of interference) | FCC: 15km CE: 7km |
| Transmitter Power (EIRP) | 902-928 MHz FCC:≤30dBm 2.400-2.4835 GHz FCC:≤30dBm CE：≤20dBm 5.725-5.850 GHz CE：≤14dBm |
| Internal Storage | 128GB |
| Display screen | 2048x1536 60fps |
| Battery | 5800mAh |
| Operating time | ~3 hours (Max. Brightness) ~4.5 hours (50% Brightness) |
| Charging time | 90 minutes |
| Internal Storage | ROM 128GB |
| Accessories | |
| Strobe | Dimensions: 39*72*34 mm Weight: 19.5g Connections: Floating Connectors Power：Avg. 1.6W Controllable Range：5000m Light intensity：Min 50cd；Max 486cd；Avg. 290cd |
| Loudspeaker | Dimensions:46*80*77 mm Weight: 98.5g Connections: Floating Connectors Power：Max 18W Decibel：120dB @ 1m；88dB @ 60m；70dB @ 110m； Max Bitrate：36kbps Adjustable Angle Range：0°~45° |
| Spotlight | Dimensions: 48.5*72*63 mm Weight: 77g Connections: Floating Connectors Power：Max 35W Controllable Range：30m Adjustable Angle Range：0°~90° Illuminance：FOV14°, Max：11lux @ 30m Straight |
| RTK Module(sold separately) | Dimensions：55.5*72.5*57 mm Weight：59.5 g Connections：Floating Connectors Power：~ 3W RTK Positioning Precision： 1.5 cm + 1 ppm（(Vertical） 1 cm + 1 ppm（Horizontal） |
| Battery | |
| Capacity | 7100 mAh |
| Voltage | 11.55 V |
| Battery Type | LiPo 3S |
| Energy | 82Wh |
| Net Weight | 365g |
| Charging Temperature | 5~45℃ |
| Storage Temperature & Humidity | -10~30℃，65±20%RH |
| Recommended Storage Temperature | 22~28℃ |
| Max Charging Power | 93 W |
| Charging Time | 90 mins |
| Charger | |
| Input | 100-240 V, 50/60 Hz, 1.5A |
| Output | 13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A |
| Voltage | 13.2 ± 0.1 V |
| Rated Power | 66 W |
| Multi-Charger | |
| Voltage | 13.2 V |
| Charging temperature range | 5℃ to 45℃ |
IN THE BOX

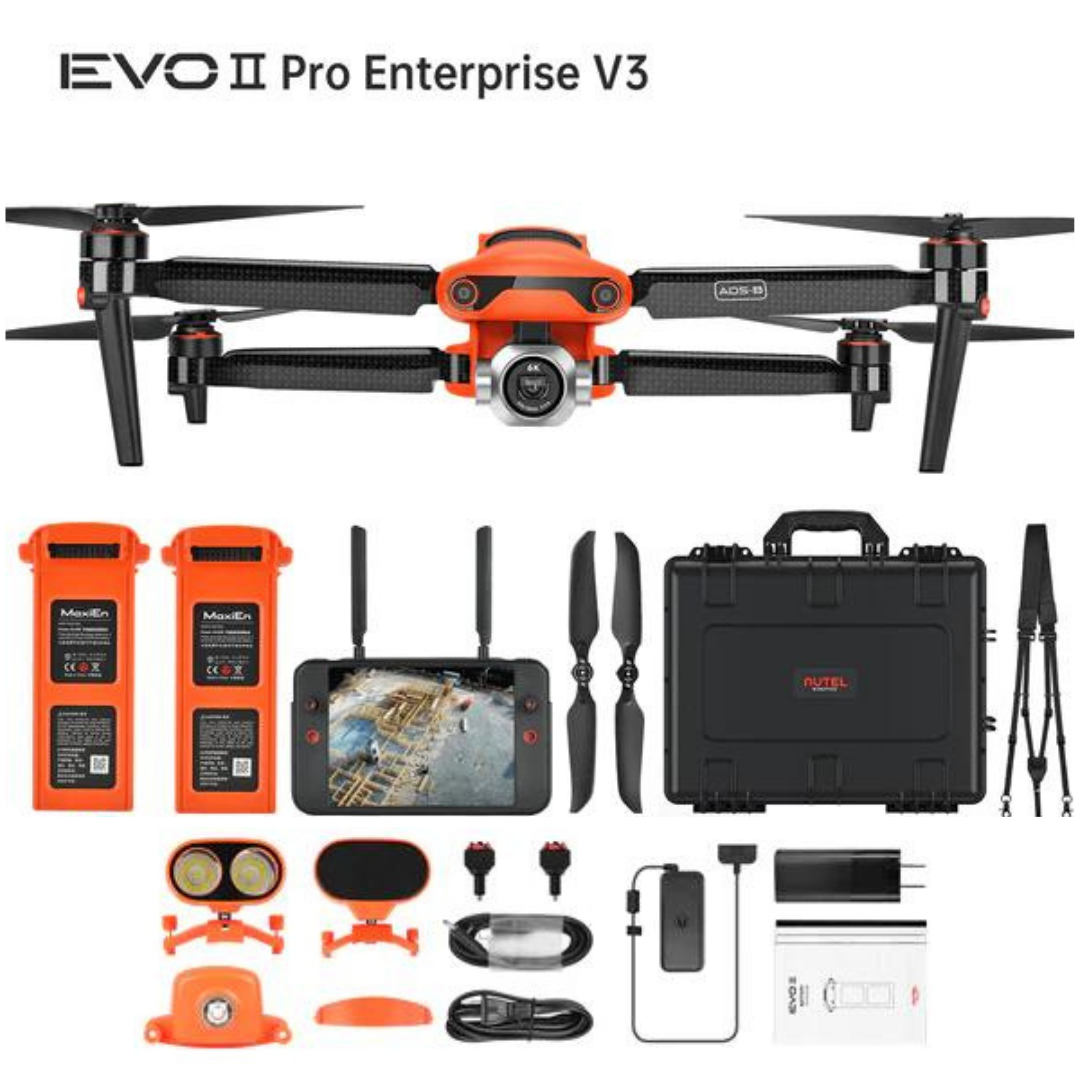

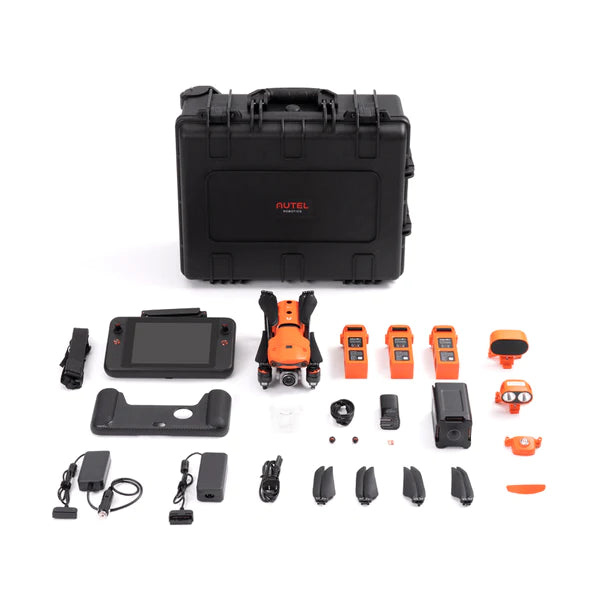

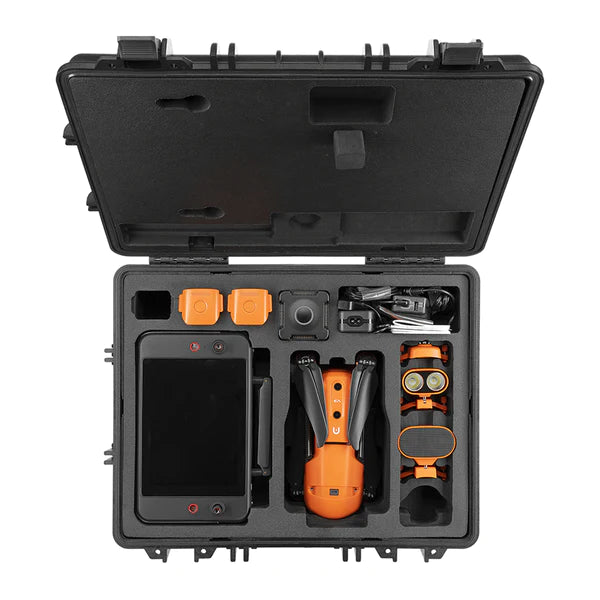

Autel EVO II Pro RTK V3 Package List
DOWNLOAD
|
Name |
Download |
|
EVO II Pro Enterprise V3 Brochure - EN.pdff |
Download_File |
|
Specs For Autel EVO II Pro Enterprise V3 - EN.pdf |
Download_File |
|
Autel Smart Controller V3 Brochure |
Download_File |
|
Specs For Autel Smart Controller V3 |
Download_File |
|
Autel Live Deck 2 Brochure |
Download_File |
|
Specs For Autel Live Deck 2 |
Download_File |
