Evo II Pro V2 Enterprise

OVERVIEW

EVO II Pro (6K) Enterprise Rugged Bundle

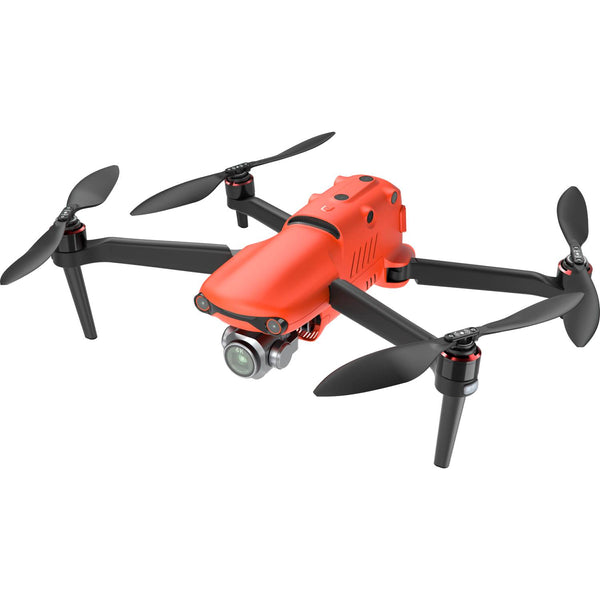

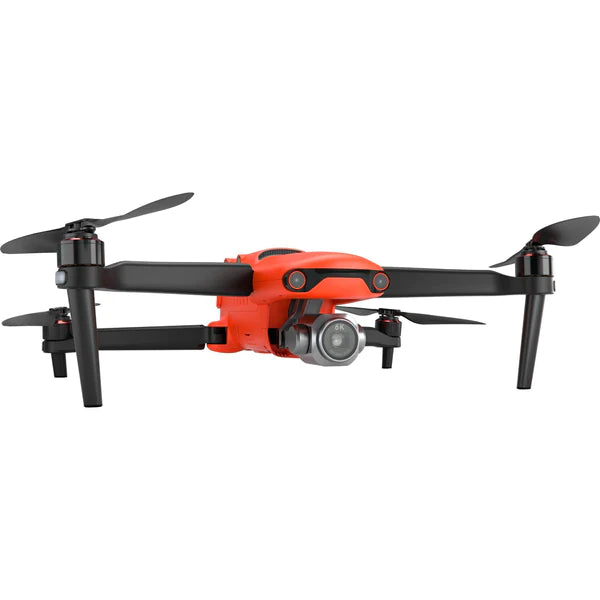

Autel Robotics EVO II Pro 6K Enterprise Bundle is the newest model in the EVO II lineup. The 6K Pro Model features a 6K 1" CMOS sensor capable of shooting up to 20MP stills. The Enterprise version features larger carbon fiber arms with bigger, more powerful motors and larger propellers which yield an additional 5-7 minutes of flight time bringing the maximum flight time to 42 minutes. The EVO II Enterprise also has an ADS-B receiver for enhanced awareness of the operators' airspace in addition to encrypted internal and external storage. All EVO II Enterprise Bundles are equipped with Autel's 7.9" 2000-nit Smart Controller for maximum viewing when operating.

The EVO II Pro Enterprise boasts a maximum flight time of 42 minutes and allows for the installation of add-on modules onto the hood of the aircraft. These add-on modules include the speaker, spotlight, and beacon, there is also an RTK add-on module for separate purchase. The EVO II Pro Enterprise comes with the Autel Smart Controller, three flight batteries, a wall charger, and a wheeled carrying case (see "In the Box" for full kit contents).

The EVO II Enterprise is a slightly different airframe from the regular EVO II models. The Enterprise model features carbon fiber arms, larger motors and larger propellers. These three characteristics yield an additional 5-7 minutes of flight time for the Enterprise model. The EVO II Enterprise also has a built-in ADS-B receiver so that you can ensure you are operating safely with knowledge of manned aircraft in your operational environment. In addition, the EVO II Enterprise features AES-256 encryption, called "Autel DataSecure Encryption".

The 20MP 1" 6K CMOS sensor features 3X lossless and 16X digital zoom capability along with an adjustable aperture range of f/2.8 to f/11. The EVO II Pro camera sensor as an electronic rolling/linear shutter.

6K Camera & Dual 640T Camera

Enterprise Accessories

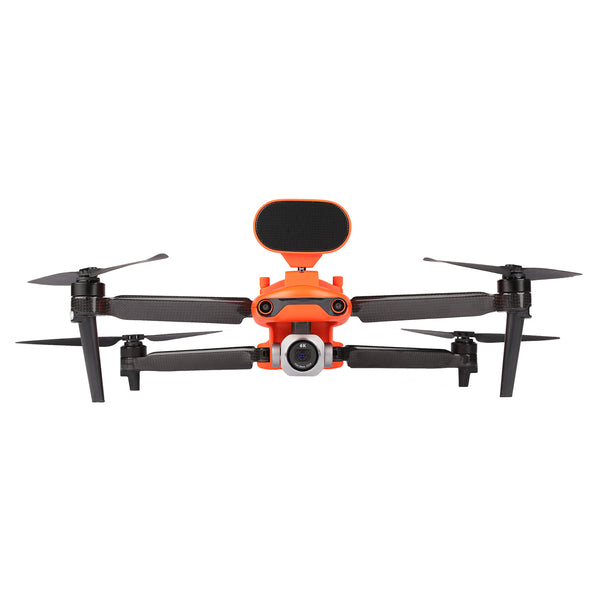

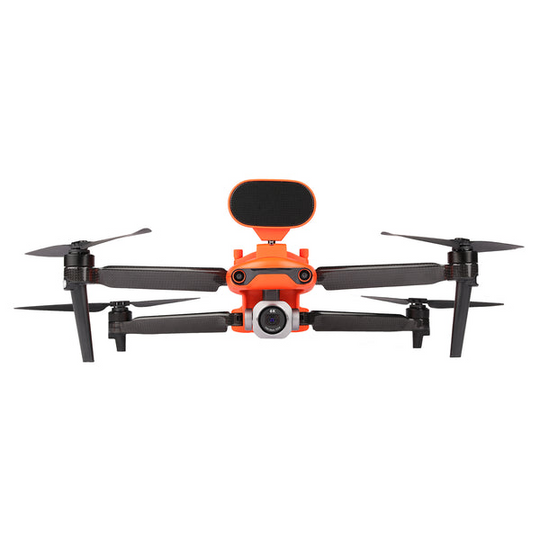

Modular accessories give users the ability to hotswap between a loudspeaker, spotlight, strobe, and RTK module for ultimate mission versatility.

Intelligent Software Features

16x Digital Zoom; Robust Mission Planner: Allows for autonomous flights and mapping-related missions in Orbit, Waypoint, Rectangular, and Polygon; Data Security, and Prerecord.

Enterprise Smart Controller

All EVO II Enterprise Bundles are equipped with Autel's 7.9" 2000-nit Smart Controller for maximum viewing when operating.

ADS-B Receiver

Detects the presence of any manned aircraft nearby emitting an ADS-B signal, giving the operator enough time to take evasive measures to avoid mid-air collisions.

t.



Autel EVO II Pro RTK 6K Camera

• 1″ CMOS Sensor & F/2.8-F/11 Adjustable Aperture

Autel Robotics EVO II Pro RTK 6K drone camera with 1-inch sensor captures incredibly smooth 6K Ultra HD video and 20MP photos. And An adjustable aperture from f/2.8 to f/11 giving you wide-ranging adjustment over how much light gets into the camera.

As for resolution, the 6K camera can achieve up to 5472 x 3648 in still and 6K/ 30fps, 4K/ 60fps in video. Also with a bit rate of up to 120 Mbps.



• 6K Hyper-lapse photography and More Shooting Modes

The EVO II Pro RTK camera drone support a variety of shooting modes, including Single-shot; Burst shooting; Auto exposure bracketing (AEB); Time-lapse (JPEG/RAW format); High-dynamic-range (HDR) imaging; HyperLight; Long exposure

• Capture the night time world

The EVO II Pro RTK camera featured Hyper-light mode for shooting in low-light conditions with 2D and 3D noise reduction smoothing motion blur and reducing noise.



• 10-bit A-Log Color Recording

This mode allows for greater flexibility in post-production for the professional photographer 10-bit allows the EVO II Pro to record up to 1 billion colors. The EVO II Pro retains rich detail in shadows and highlights, allowing greater flexibility in post-production.

• Connect Autel Live Deck to display live video from EVO II on any device

The live video from EVO 2 RTK drone can be displayed on your remote controller or connect with Autel Live Deck to display on any device including computer, TV, Ipad via USB, HDMI, Ethernet, to meet the requirements of projection monitoring and live streaming.

• Adjust field-of-view to any angle from 0° to 90° while flying

EVO II Pro RTK Drone contains a high-precision 3-axis gimbal that keeps the camera steady while the aircraft is flying, ensuring image stability and clarity. Also, You can use the remote control's gimbal pitch dial to adjust the pitch axis to any angle from 0° to 90° at any time.

• Cameras interchangeable

Autel EVO II Series Dones is one aircraft with three camera options. All cameras for Evo II can be purchased separately and are interchangeable!

EVO II - AI Enhanced Dynamic Track

EVO II Pro RTK can model location and speed of targets simultaneously, predict their trajectory accurately, avoiding obstacles during flight, and track them continuously while identifying up to 64 objects at the same time. The function can track the subject in three modes: behind, side-by-side, or fixed position.



360° Obstacle Avoidance

EVO 2 Pro RTK Drone’s front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between the aircraft and potential obstacles. Begin detecting potential hazards at up to 30m away and let EVO II accurately control the speed of the drone to avoid a collision.

Multiple Intelligent Flight Modes

Autel EVO II Drone supports multiple smart Flight Modes includes Dynamic Track, Parallel Track, Tripod Track, Viewpoint, Orbit, Gesture control, VR Flight, Waypoint and more.

Failsafe & Automatically Return Home

EVO 2 Pro RTK will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.

40 Minutes & 5.5 Miles HD Transmission

Autel EVO 2 Pro comes standard with a 7100mAh rechargeable battery. Providing up to 40min of flight time in forward motion to up to 9km (5.5miles) away and 35min at a hover. And top speed up to 45MPH, additionally There is no geofencing or cellular service restrictions on any of EVO II.



SPECS

EVO II Pro V2 Enterprise

Aircraft
Takeoff Weight (Without Accessories)	EVO II Pro Enterprise：2.45lbs (1110g) EVO II Dual 640T Enterprise：2.51lbs (1136.5g)
Diagonal Length	16.8in (427mm)
Max Flight Time (no wind)	42min（without accessories）
Hovering Time (no wind)	38min（with strobe） 29min（with spotlight） 34min（with loudspeaker） 36min（with RTK module）
Max Level Flight Speed	45 mph (20 m/s) (Ludicrous)
Max Ascent Speed	18 mph (8 m/s (Ludicrous)
Max Descent Speed	9 mph (4 m/s) (Ludicrous)
Max Service Ceiling Altitude	4.3 miles (7000 m) MSL
Operating Temperature	14℉ to 104℉ (-10℃ to 40℃)
Max Wind Speed Resistance	39mph (17m/s)
Operating Frequency	2.400GHz - 2.4835GHz；5.725GHz - 5.850GHz
Hovering Accuracy Range	Vertical: ± 0.3ft (0.1m) (with RTK) ± 0.3ft (0.1m) (with Vision Positioning) ± 1.6ft (0.5m) (with GPS Positioning) Horizontal: ± 0.3ft (0.1m) (with RTK) ± 0.9ft (0.3m) (with Vision Positioning) ± 4.9ft (1.5m) (with GPS Positioning)
Gimbal
Operation Range	Pitch: -135° to +45° Yaw: -100° to +100°
Operation Range	Pitch: -90° to +30° Yaw: -90° to +90°
Stability	More Stable with 3 Axies
Max Control Speed (Tilt)	300°/s
Angular Vibration Range	±0.005°
Enterprise Camera
Sensor	1-inch CMOS; 20 million effective pixels
FOV	82°
Aperture	f/2.8 - f/11
f/2.8 - f/11	1m to ∞
Equivalent Focal Length	28.6mm
ISO Range	Video: 100-6400 (auto) Photo: 100-3200 (auto)
Zoom	1-16x (up to 3x lossless zoom)
Still Photography Modes	Single Shot Burst shooing: 3/5 frames Automatic Exposure Bracketing (AEB)： 3/5 bracketed frames at 0.7 EV Bias Timelapse： JPG：2s/5s/7s/10s/20s/30s/60s DNG：5s/7s/10s/20s/30s/60s HyperLight：support (under 4K JPEG format） Long Exposure: Max 8s HDR imaging: (under 4K JPEG)
Still Photography Resolution	5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9)
Video Format	MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Video Resolution	6K 5472*3076 p30/p25/p24 4K 3840*2160 p60/p50/p48/p30/p25/p24 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 1080p 1920*1080 p120/p60/p50/p48/p30/p25/p24
Max Bitrate	120Mbps
Dual 640T Enterprise Thermal Camera
Sensor	Vanadium oxide uncooled infrared focal plane detector
Viewing Angle	H33°V26°
Sensor resolution	640x512
Pixel Pitch	12μm
Focal Length	13mm
Wavelength range	8～14μm
Accurate temperature measurement distance	2-20 meters
Temperature measurement accuracy	±3℃ or ±3% of reading (whichever is greater) @ambient temperature -20℃~60℃
Temperature range	High gain mode: -20° to +150°C Low gain mode: 0° to +550°C
Zoom	1-16x
Photo shooting mode	Single shooting, continuous shooting,time-lapse shooting
Camera resolution	Infrared mode: 640*512 Picture in Picture: 1920*1080, 1280*720
Video Resolution	640*512 30fps
Video format	MOV / MP4 (support H.264/H.265)
Dual 640T Enterprise Visual Camera
Sensor	1/2 inch CMOS; 48M effective pixels
FOV	FOV：79°
Aperture	f/1.8
Focus range	0.5m to ∞
Equivalent Focal Length	25.6mm
ISO Range	Video: 100-6400 (auto) Photo: 100-3200 (auto)
Zoom	1-16x (up to 4x lossless zoom)
Still Photography Modes	Single Shot Burst shooing: 3/5 frames Automatic Exposure Bracketing (AEB)： 3/5 bracketed frames at 0.7 EV Bias Timelapse： JPG：2s/5s/7s/10s/20s/30s/60s DNG：5s/7s/10s/20s/30s/60s HyperLight：support (under 4K JPEG format） Long Exposure: Max 8s HDR imaging: (under 4K JPEG)
Still Photography Resolution	8000*6000 (4:3) 7680*4320 (16:9) 4000*3000 (4:3) 3840*2160 (16:9)
Video Format	MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Video Resolution	8K 7680*4320 p25/p24 6K 5760*3240 p30/p25/p24 4K 3840*2160 p60/p50/p48/p30/p25/p24 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24 1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24
Max Bitrate	120Mbps
Remote Controller
*Operating Frequency	902-928 MHz; 2.400-2.4835 GHz; 5.725-5.850 GHz
Max Transmission Distance(unobstructed, free of interference)	FCC: 13km CE: 7km
Transmitter Power (EIRP)	902-928 MHz FCC:≤30dBm 2.400-2.4835 GHz FCC:≤30dBm CE：≤20dBm 5.725-5.850 GHz CE：≤14dBm
Internal Storage	128GB
Video Output Port	HDMI
Built-in Battery	Name: Intelligent Li-ion battery Capacity：5800mAh Voltage：11.55V Battery Type：Li-ion Battery Energy：67 Wh Charging time：120 min
Battery Life	3hr (Max. intensity) 4.5hr (50% intensity)
Operating Temperature	-20℃ - 40℃
RC Size	303×190×87mm(Ant. folded) 303 x 273 x 87 mm (Ant. unfolded)
Weight	1150g (Without protective case) 1250g (With protective case)
Satellite Positioning Module	GPS + GLONASS + Galileo
Accessories
Strobe	Dimensions: 39*72*34 mm Weight: 19.5g Connections: Floating Connectors Power：Avg. 1.6W Controllable Range：5000m Light intensity：Min 50cd；Max 486cd；Avg. 290cd
Loudspeaker	Dimensions:46*80*77 mm Weight: 98.5g Connections: Floating Connectors Power：Max 18W Decibel：120dB @ 1m；88dB @ 60m；70dB @ 110m； Max Bitrate：36kbps Adjustable Angle Range：0°~45°
Spotlight	Dimensions: 48.5*72*63 mm Weight: 77g Connections: Floating Connectors Power：Max 35W Controllable Range：30m Adjustable Angle Range：0°~90° Illuminance：FOV14°, Max：11lux @ 30m Straight
RTK Module(sold separately)	Dimensions：55.5*72.5*57 mm Weight：59.5 g Connections：Floating Connectors Power：~ 3W RTK Positioning Precision： 1.5 cm + 1 ppm（(Vertical） 1 cm + 1 ppm（Horizontal）
Battery
Capacity	7100 mAh
Voltage	11.55 V
Battery Type	LiPo 3S
Energy	82Wh
Net Weight	365g
Charging Temperature	5~45℃
Storage Temperature & Humidity	-10~30℃，65±20%RH
Recommended Storage Temperature	22~28℃
Max Charging Power	93 W
Charging Time	90 mins
Charger
Input	100-240 V, 50/60 Hz, 1.5A
Output	13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
Voltage	13.2 ± 0.1 V
Rated Power	66 W
Storage
Internal Storage	8 G
SD Storage	Standard: 32 GB Max. support 256GB （ UHS-3 rating required ）

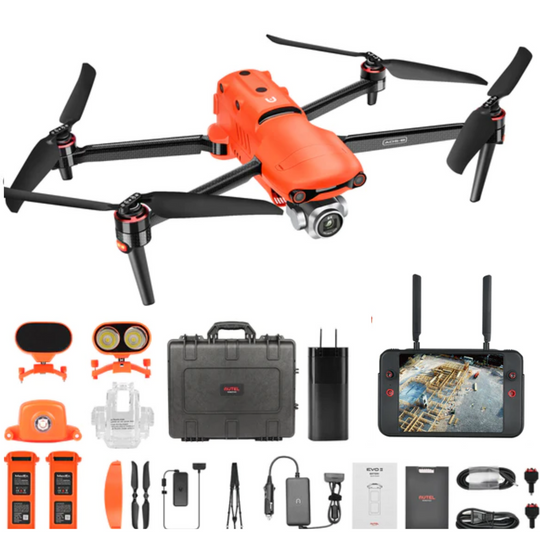

IN THE BOX

Autel EVO II Pro Enterprsise V2
