EVO II Dual 640T V3

OVERVIEW

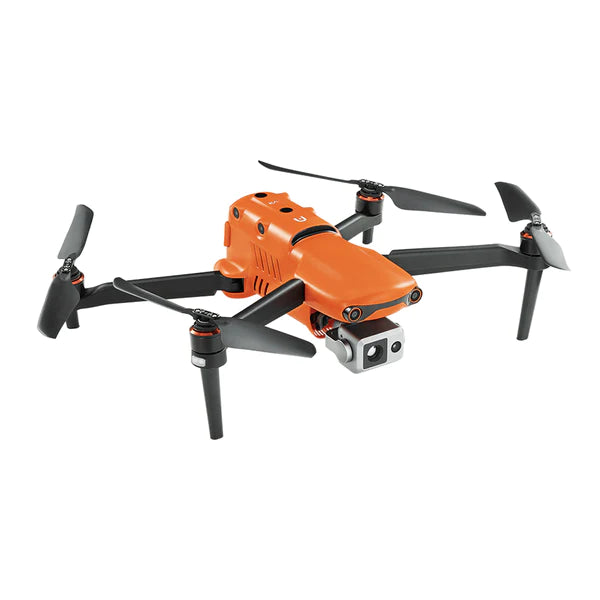

EVO II Dual 640T V3

Autel EVO 2 Dual 640T V3 infrared drone ias an industry-first drone combining infrared imaging camera with 8K video camera. With thermal resolution up to 640x512 and an 8k sensor EVO 2 becomes a workhorse. First responders, contractors, and business owners finally have a compact and portable tool that gives them the data they have been asking for.

Thermal Drone

Equipped with a 640 x 512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, Autel 640T V3 is easier than ever to observe distant targets. The system uses a new image processing algorithm, making thermal details clearer and more discernible than other options with similar resolution and hardware..

DRI Ranges

See a specific subject's identity, activity, or personal items.

Multiple Temperature Measurement Modes

50MP Ultra-Sensitive Camera

The EVO II Dual 640T V3's RYYB sensor features the Moonlight Algorithm 2.0 that provides excellent noise reduction in limited lighting conditions, further enhancing its 50 megapixel camera to give users more detail for better forensics and analysis.

360° Obstacle Avoidance

Autel Robotics EVO II Dual 640T V3 is equipped with 19 groups of sensors including 12 visual sensors,the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.

Practical and Convenience Features

*Please fly safely and consult your local laws and regulations. Autel Robotics is not liable for any unauthorized flights.

**It’s required to update the latest firmware and app to enjoy comprehensive warranty. More information please refer to warranty policy.

Industry Leading Performance

Autel SkyLink 2.0 Video Transmission

SkyLink 2.0 is built into the EVO II Dual 640T V3 chipset, expanding the possibilities for your most critical workflows.



EVO II - AI Enhanced Dynamic Track

EVO II Dual smart tracking uses deep learning algorithms to automatically track the selected subject while avoiding obstacles during flight. The function can track the subject in three modes: behind, side-by-side, or fixed position.

Auto go home & Accurate Landing

EVO 2 Dual 640T V3 will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.

ATH(Auto Reture Home)

Autel Smart Controller V3

Smart Controller V3's 7.9-inch, 2000 nit high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 9 miles away and enhances anti-interference abilities with triple-band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

Broadcast with Live Deck 2

Transmit real-time HD video to a wide-variety of devices, allowing cross-departmental teams enhanced situational awareness and communication which can lead to quicker and better decision making.(Support all EVO II V3 drones.)

Enhancement

Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.

Thermal Color Palettes

White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Iron bow | Lava | Arctic | Searing | Gradation | Heat Detection

Lossless Zoom

Human Search

Infrared Thermal Analysis Tool(IRPC)

This free temperature measurement analysis tool is developed for the 640T V3, and enables users to quickly import images, edit and analyze temperature measurement, and to generate detailed reports for sharing and coolaboration.(Select the "Word" icon Export report. Generate analysis report)

SPECS

Thermal Camera

Sensor	Uncooled VOx Microbolometer
Lens	FOV H33°V26° Focal length 13mm
Zoom	1 - 16x
Pixel size	12 µm
Wavelength range	8-14 µm
Temperature range	High gain mode: -20° to +150° Low gain mode: 0° to +550°
Temperature measurement accuracy	±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃
Accurate temperature measurement distance	2-20 meters
Video resolution	640x512@25fps
Video format	MOV / MP4 (Support H.264/H.265)
Camera resolution	Infrared mode: 640*512 Picture-in-picture mode: 1920*1080, 1280*720
Photo mode	Single shot Burst shooting: 3/5 frames, 3 is the default Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s
Photo format	JPG (with irg file)

Visible Light Camera

Sensor	1/1.28"(0.8") CMOS Effective Pixels: 50 MP
Lens	FOV: 85° 35 mm format equivalent focal length: 23 mm Aperture: f/1.9 Focus range: 0.5 m to infinity (with auto focus)
ISO Range	Video: 100-64000 Photo: 100-6400
Shutter Speed	Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates
Digital Zoom	1 ~ 16x (Max. 4x lossless zoom)
Maximum photo size	8192*6144(4:3) 4096*3072(4:3) 3840x2160(16:9)
Image Format	JPG (default) / DNG / JPG+DNG
Video format	MOV / MP4
Video resolution	3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24
Max bitrate	80Mbps
Supported file system	FAT32/exFAT

Gimbal

Gimbal	3-axis stabilization
Mechanical Range	Tilt: -135° to +45°; Pan: -100° to +100°
Controllable Range	Pitch: -90° to +30° Yaw: -90° to +90°
Max Control Speed (Tilt)	300°/s
DAngular Vibration Range	±0.005°

Aircraft

Takeoff weight (With propellers and battery)	2.67 lbs (1209 g)
Max Takeoff Weight	4.4 lbs (1999 g)
Size(L*W*H)	Folded(L x W x H): 230*130*108 mm (9.1*5.1*4.3 inches) Unfolded(L x W x H): 457*558*108 mm (18*22*4.3 inches)
Wheelbase	397 mm
Maximum Takeoff Altitude	22,965 ft (7000 m)
Max ascent speed	8 m/s (Ludicrous)
Max descent speed	4 m/s (Ludicrous)
Max horizontal flight speed	20m/s (Ludicrous)
Max flight distance (no wind)	22 km
Max angular velocity	120°/s
Max tilt angle	33° (Ludicrous)
Max flight time (no wind)	38 min
Max hovering time (no wind)	33 min
Operating temperature range	14 °F to 104 °F (-10℃ ~ 40℃)
Maximum resistance to wind	12 m/s (Take-off and landing)
Operating frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz
Transmission power (E.I.R.P)	Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally)
GNSS	GPS/Beidou/Glonass/Gallieo
Internal storage	8GB
SD storage	max. support 256GB (UHS-3 or Class 10)

Sensing System (Obstacle Avoidance)

Sensing System	Omnidirectional Binocular Obstacle Sensing System
Sensing system type	Omnidirectional sensing system
Forward	Accurate measurement range: 0.5-18 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
Backward	Accurate measurement range: 0.5-16 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
Upward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: Horizontal: 65°, Vertical: 50°
Downward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: Horizontal: 100°, Vertical: 80°
Left and right	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: Horizontal: 60°, Vertical: 50°
Operating Environment	Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.) Downward:Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.)

Remote Controller

Operating frequency	902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz
Transmission power (E.I.R.P)	FCC：≤33dBm CE：≤20dBm@2.4G，≤14dBm@5.8G SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G
Max Transmission Distance (unobstructed, free of interference)	FCC：9.3 miles (15 km) CE：5 miles (8 km)
Display screen	2048x1536 60fps
Battery	5800mAh
Operating time	~3 hours (Max. Brightness) ~4.5 hours (50% Brightness)
Charging time	120 minutes
Internal Storage	ROM 128GB

Battery

Capacity	7100 mAh
Voltage	11.55 V
Battery type	LiPo 3S
Energy	82 Wh
Weight	365 g
Charging temperature range	5℃ to 45℃
Storage temperature and humidity	-10~30℃，65±20%RH
Recommended storage temperature	22-28℃
Max charging power	93W
Charging Time	90 minutes

Charger

Input	100-240 V, 50/60 Hz, 1.5A
Output	13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
Voltage	13.2±0.1V
Rated power	66W

Multi-Charger

Voltage	13.2 V
Charging temperature range	5℃ to 45℃

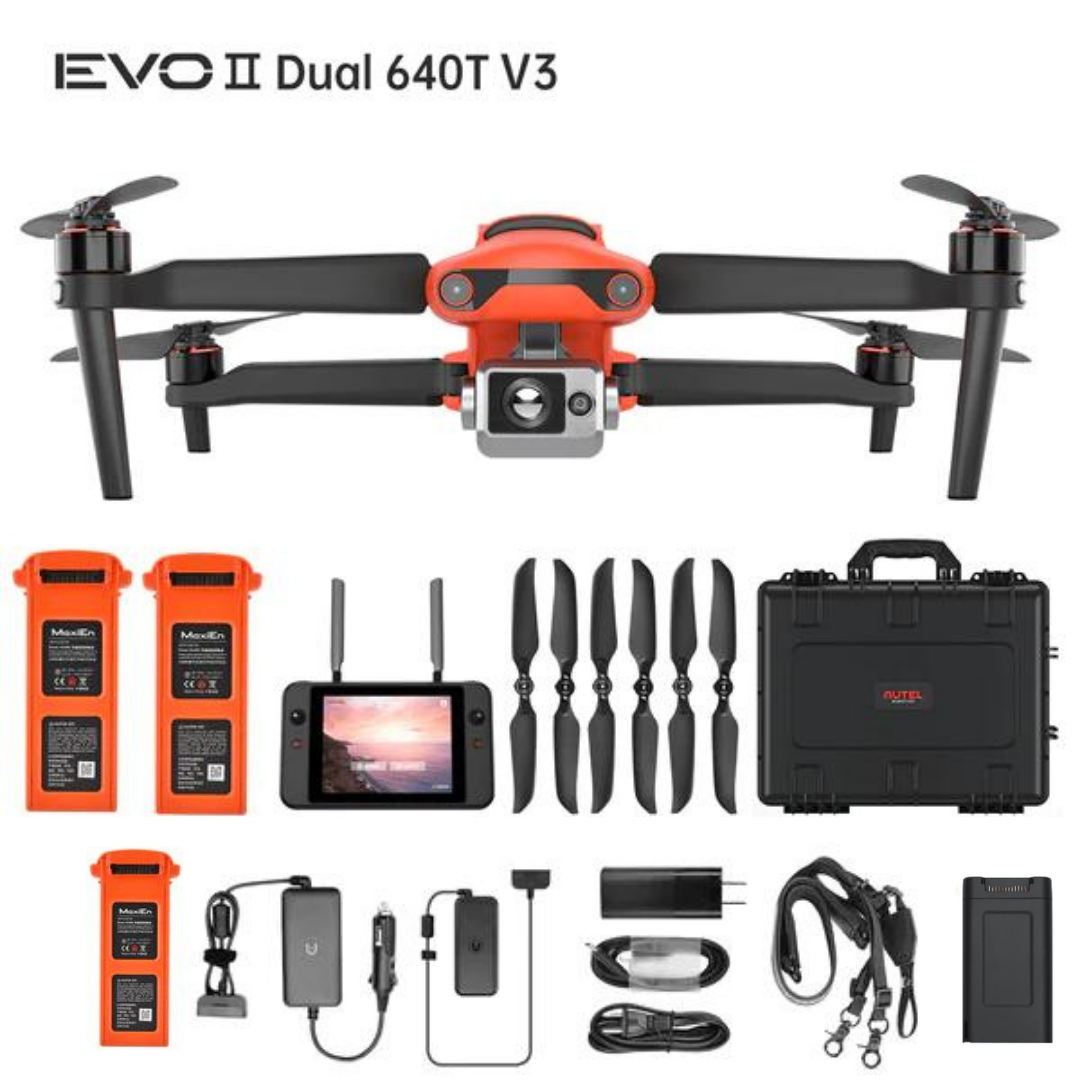

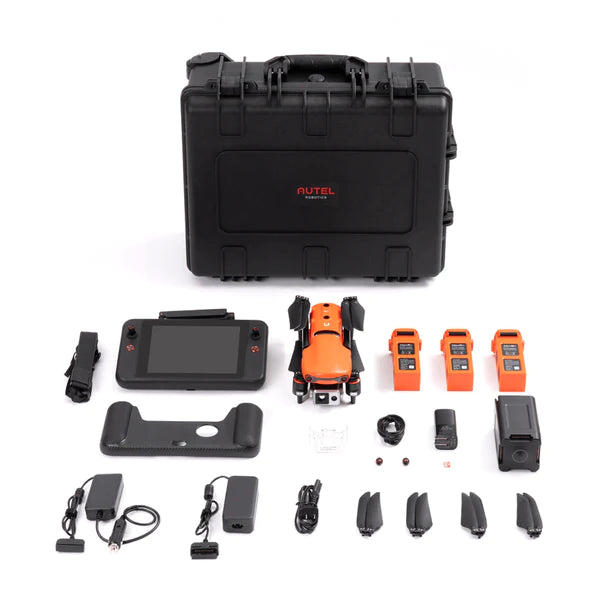

IN THE BOX
